New

HM250 1/2.3" 12X Overlay

MFR #GY-HM250ESB BLK #197-0323

Special Price

Not in stock

Quick Overview

Handheld Camera HD/4K
1080 50/60P & 4K/HD 4:2:2
Slow Motion & Live Streaming
Broadcast features - Graphic Score
CMOS 1/2.3" 12.4MP 29-355mm 12X
HDMI 4K & SDI Outputs
XLR Inputs - Titles - Logos

HM250 1/2.3" 12X Overlay

The GY-HM250ESB is an innovative camcorder that produces professional quality coverage of sporting events and broadcasts, complete with a full screen graphic overlay. Shoot a game with browser-updatable score graphics and be ready for the post-game interview with professional broadcast banners. Then stream live with your logo on the footage, or display a score overlay and game clock, all without requiring an external switcher or CG.

Features

9 user button assignable functions
Includes handle unit and SSL-JVC50 7.4V battery, AC Adapter
Wired remote control supported
3.5-inch colour LCD display (920K pixel) with smart focus assist function
0.24-inch colour viewfinder (1.56M pixel) with smart focus assist function
High quality integrated 12x F1.2-3.5 zoom lens (35mm equivalent: 29.5-354mm)
4K Ultra HD recording (150 Mbps, 24/30p) to SDXC (UHS-I Speed class3) card
Broadcast features • Customizable graphic overlays (on/off switchable) • Option for custom broadcaster logos, watermark, time and temperature • Selectable pre-loaded logos
External microphone and WIFI or LTE Dongle not included
Sports features • Graphic score overlays for most sports (selectable score on/off) • soccer score • Option for custom logos
Built-in stereo microphone
120fps HD slow motion recording
Live 4K UHD output via HDMI connector
4:2:2 full HD recording at 50Mbps (24-60p)
Single 1/2.3-inch CMOS image sensor with 12.4 million pixels (9.03 active)
Dynamic zoom in HD mode combines optical zoom and pixel mapping to create seamless and lossless 24x zoom
Advanced JVC streaming engine compatible with USTREAM, Zixi and Wowza Streaming Engine
IP network remote control, remote viewing, metadata editing, FTP clips (requires appropriate network connection and adapter)
Dual SDHC/SDXC slots enable dual, backup and continuous recording
2 position ND filter (1/4, 1/16)
HD-SDI (3G) and HDMI outputs (4K output via HDMI only)

Full HD 4:2:2 recording at 50Mbps

The ability to record H.264 4:2:2 24-60p at 50Mbps makes this an ideal camera for broadcasting and production houses alike. The colour accuracy of 4:2:2 enables the camera to deliver exceptional colour resolution even when images are in sharp contrast to the background. This is particularly useful when strong colours are in contrast to bright backgrounds, or in green screen usage.

120fps high-speed recording for slow motion playback

The camcorder allows high-speed recording at up to 120fps (59.94Hz) / 100fps (50Hz) for smooth slow motion playback. This can be used to create artistic effects or to review action replays when examining sporting skills. The feature is only available at 1920x1080 resolution only, and offers up to 1/5 slow at 24p mode.

12x optical zoom and seamless 24x dynamic zoom

The ultra high quality imagery begins with a precision 12x F1.2–3.5 optical zoom lens (35mm equivalent: 29.6–355mm). When shooting in HD mode, Dynamic Zoom combines optical zoom and pixel mapping from a 4K image sensor to create seamless and lossless 24x zoom. This allows the camera to have a long zoom range while retaining its compact form factor.

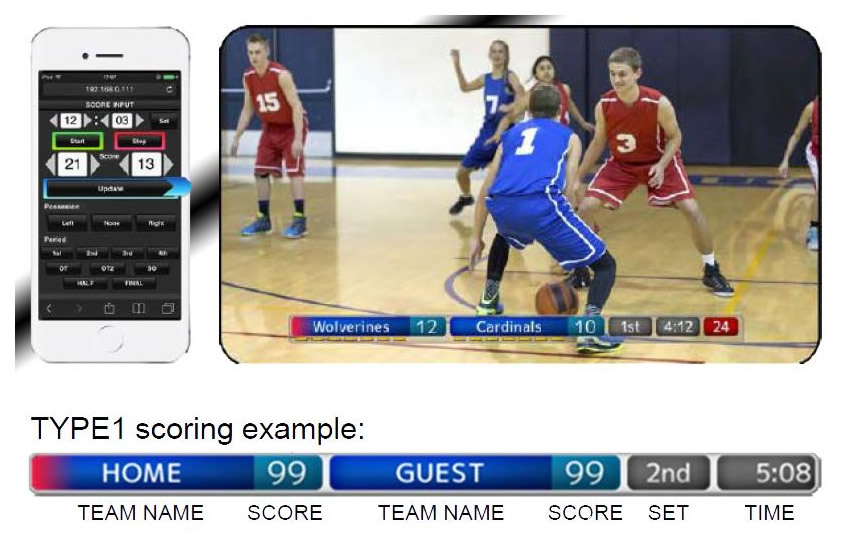

Score overlays and customisation for live streaming and recorded video

Designed for enhanced single-camera production, the camera offers lower-third score overlays for recorded or streamed HD video output without an external CG or production switcher. The camera comes with graphics pre-installed for a variety of sports, including football, American football, basketball, baseball, hockey and more. The overlays are controlled using a browser-equipped device such as a tablet or smartphone, and JVC’s software utility lets customers upload team logos. The camera is perfect for streaming the game live to your fans or for playback analysis in the dressing room, especially for teams on a budget.

Advanced IP network communication and live HD streaming

The camcorder features JVC's latest IP communications engine, giving you remote control and monitoring of vital camera and lens functions from a tablet, smartphone, or computer anywhere in the world. Live streaming is possible in HD or SD resolutions, depending on available bandwidth. Connect your camera to an optional Wi-Fi or 4G/LTE modem and share your programme with an audience anywhere in the world via content delivery networks such as YouTube, Facebook Live, and other cloud services.

Custom full screen overlays and slide shows

Add up to 50 full screen custom graphics (PNG or JPG format) from an SD card to the camera and store them in its memory for live streaming or recording in HD mode. Overlays and slides are a perfect way to advertise your sponsors either as banners during the game, or full screen at halftime. It’s also a great way to introduce the team members via a pre-game slideshow. Place a watermark anywhere on the screen, even while doing lower-third score overlays.

HM250 1/2.3" 12X Overlay

OPTIONS-SXETIKA

Options

HM250ESB (built-in graphics)

STATUS

Status

Discontinued

Camera Type

Handheld Camera

HD Camera

4K Camera

VIDEO SPECIFICATIONS

Video Format

AVCHD 2.0(MPEG4/H.264) up to 28Mbps - 4:2:0/8bit - M2TS files

MPEG4/H.264 up to 50Mbps - 4:2:2/8bit - MOV files

MPEG4/H.264 up to 150Mbps (4K/HD) - 4:2:0/8bit - MOV files

Video Resolution

SD 480i NTSC(16:9)

SD 576i PAL(16:9)

HD 720: 1280 x 720pixels(16:9 aspect ratio)

HD 1080: 1440 x 1080pixels(4:3 aspect ratio)

HD 1080: 1920 x 1080pixels(16:9 aspect ratio)

4K UHD: 3840 x 2160pixels(16:9 aspect ratio)

Slow Motion

Yes

Quick Motion - Time Lapse

No

Frame Rate

24P/25P/30P @3840x2160Pixel
24P/25P/30P/50i/50P/60i/60P/120P @1920x1080Pixel
50i/60i @1440x1080Pixel
50P/60P @1280x720Pixel
50i @720x576Pixel
60i @720x480Pixel
Slow motion: 120P @1920x1080Pixel

Rec Media

SD/SD-HC/SD-XC Card

Simultaneous REC

Yes

Rec Time

267min @28Mbps with 64GB REC-Media

148min @50Mbps with 64GB REC-Media

49min @150Mbps with 64GB REC-Media

Pre Record

Yes

LENS SYSTEM

Sensor Type

CMOS

Sensor Size

1/2.3"

Sensor Resolution

12.4MP

Lens Type

Fixed

Lens Manufacturer

JVC

Focal Length

29.6mm to 355mm (35mm equivalent)

Zoom

12X

Aperture

Zoom out: F1.2 to F11
Zoom in: F3.5 to F32

Control Rings

2 Rings(Zoom, Focus)

Auto Focus

Yes

Image Stabilizer

Yes

Filter Diameter

62mm

ND Filters

Yes

CONNECTIONS

Video outputs

3G/HD/SD-SDI (BNC) 4:2:2

HDMI 4K

CVBS (Jack to RCA)

Audio inputs

3-PIN XLR Mic/Line

Jack 3.5mm Stereo

Audio outputs

Jack 3.5mm Stereo

Jack to 2xRCA

2CH Embedded Audio SDI

2CH Embedded Audio HDMI

PC Connections

USB2.0

USB2.0 Host

Other Connections

Remote (Jack 2.5mm)

GENERAL FEATURES

Min. Illumination

1LUX

Streaming

Web Live Streaming with internal engine

File Transfer

Supports FTP Transfer

LCD

3.5"

Viewfinder

Yes, 0.24"

MORE SPECIFICATIONS

Extras

Dual Codec Recording.
Record and Stream Simultaneously.
4K output.
Logo insertion.
4:2:2 4K/HD recording.
Broadcast Features.
Titles - Sport Graphics.
Score boards.

Power

JVC SSL-JVC50 Type Battery

Power adapter

No. of battery slots

1

Power Consumption

8.5W (7.4V/1.14A - 12V/0.7A)

Warranty

2-Years

Country of Origin

Japan

PHYSICAL

Total Weight (KG)

1.47

Weight details

Body Only

Total Dimensions (WxHxD) (mm)

149x191x307

Availability

Usually in 15working days

HM250 1/2.3" 12X Overlay

HM-250ESB Camera
SSL-JVC50 Battery
Handle Unit w Professional Audio XLR support
AC/DC Adapter
Instructions
