HM250 CMOS 1/2.3" 12X 4K
Key features
- Wired remote control supported
- 9 user button assignable functions
- 0.24-inch colour viewfinder (1.56M pixel) with smart focus assist function
- Built-in stereo microphone
- 3.5-inch colour LCD display (920K pixel) with smart focus assist function
- High quality integrated 12x F1.2-3.5 zoom lens (35mm equivalent: 29.6-355mm)
- 4K Ultra HD recording (150 Mbps, 24/30p) to SDXC (UHS-I Speed class3) card
- Broadcast features • Customizable graphic overlays (on/off switchable) • Option for custom broadcaster logos, watermark, time and temperature • Selectable pre-loaded logos
- Includes handle unit and SSL-JVC50 7.4V battery, AC Adapter
- External microphone and WIFI or LTE Dongle not included
- 120fps HD slow motion recording
- Live 4K UHD output via HDMI connector
- 4:2:2 full HD recording at 50Mbps (24-60p)
- Single 1/2.3-inch CMOS image sensor with 12.4 million pixels (9.03 active)
- Dynamic zoom in HD mode combines optical zoom and pixel mapping to create seamless and lossless 24x zoom
- Advanced JVC streaming engine compatible with USTREAM, Zixi and Wowza Streaming Engine
- IP network remote control, remote viewing, metadata editing, FTP clips (requires appropriate network connection and adapter)
- Dual SDHC/SDXC slots enable dual, backup and continuous recording
- 2 position ND filter (1/4, 1/16)
- HD-SDI (3G) and HDMI outputs (4K output via HDMI only)
Full HD 4:2:2 recording at 50Mbps
The ability to record H.264 4:2:2 24-60p at 50Mbps makes this an ideal camera for broadcasting and production houses alike. The colour accuracy of 4:2:2 enables the camera to deliver exceptional colour resolution even when images are in sharp contrast to the background. This is particularly useful when strong colours are in contrast to bright backgrounds, or in green screen usage.
12x optical zoom and seamless 24x dynamic zoom
The ultra high quality imagery begins with a precision 12x F1.2–3.5 optical zoom lens (35mm equivalent: 29.6–355mm). When shooting in HD mode, Dynamic Zoom combines optical zoom and pixel mapping from a 4K image sensor to create seamless and lossless 24x zoom. This allows the camera to have a long zoom range while retaining its compact form factor.
1/2.3-inch 12.4M CMOS sensor
This camcorder was built to deliver stunning, life-like 4K Ultra HD (3840x2160) video. JVC’s 4K CMOS sensor with 12.4M pixels delivers high sensitivity and excellent performance over a wide range of lighting conditions. Details are crisp and accurate throughout the entire image plane.
Advanced IP network communication and live HD streaming
The camcorder features JVC's latest IP communications engine, giving you remote control and monitoring of vital camera and lens functions from a tablet, smartphone, or computer anywhere in the world. Live streaming is possible in HD or SD resolutions, depending on available bandwidth. Connect your camera to an optional Wi-Fi or 4G/LTE modem and share your programme with an audience anywhere in the world via content delivery networks such as YouTube, Facebook Live, and other cloud services.

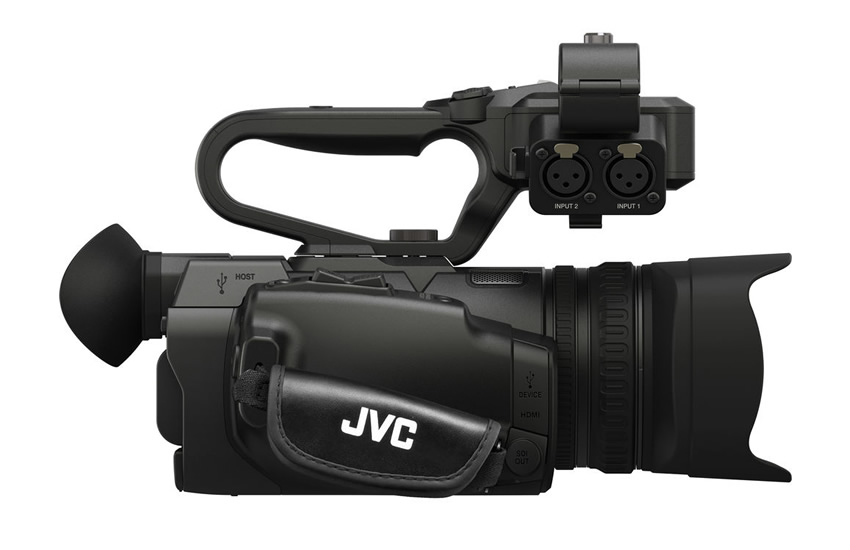

Detachable handle unit with professional XLR audio
The detachable heavy-duty handle makes the camcorder easy to carry and also makes it simple to shoot from low angles, thanks to its built-in REC button with lock function, and zoom lever. XLR audio inputs are provided for the attachment of a professional microphone or for LINE input, complete with Phantom power supply capability.
HM250 CMOS 1/2.3" 12X 4K
-
Status
Discontinued
Camera TypeHandheld Camera
HD Camera
4K Camera
-
Options
HM250
-
Max Video Resolution
HD 1080: 1920 x 1080pixels (16:9 aspect ratio)
SD 480i NTSC(16:9)
SD 576i PAL(16:9)
HD 1080: 1440 x 1080pixels (4:3 aspect ratio)
4K UHD: 3840 x 2160pixels (16:9 aspect ratio)
Slow MotionYes
Rec MediaSD/SD-HC/SD-XC Card
-
Sensor Type
CMOS
Sensor Size1/2.3" (crop factor 5.65)
Sensor Resolution12.4MP
Lens MountFixed
Focal Length (35mm equivalent)29.6mm to 355mm (35mm equivalent)
Optical Zoom12X
Max ApertureZoom out: F1.2 to F11
Zoom in: F3.5 to F32Image StabilizerYes
Filter Diameter62mm
ND FiltersYes
-
Video outputs
3G/HD/SD-SDI (BNC) 4:2:2
HDMI 4K
CVBS (Jack to RCA)
Audio inputs3-PIN XLR Mic/Line
Jack 3.5mm Stereo
Audio outputsJack 3.5mm Stereo
Jack to 2xRCA
2CH Embedded Audio SDI
2CH Embedded Audio HDMI
PC ConnectionsUSB2.0
USB2.0 Host
Other ConnectionsRemote (Jack 2.5mm)
-
Min. Illumination
1LUX
LCD3.5"
ViewfinderYes, 0.24"
-
Extras
Dual Codec Recording.
Record and Stream Simultaneously.
4K output.
Logo insertion.
4:2:2 4K/HD recording.PowerJVC SSL-JVC50 Type Battery
Power adapter
No. of battery slots1
Power Consumption8.5W (7.4V/1.14A - 12V/0.7A)
Warranty2-Years
Country of OriginJapan
-
Total Weight (KG)
1.47
Weight in Detailweight includes battery
Total Dimensions (WxHxD) (mm)149x191x307
Dimensions in Detaildimensions are calculated with handle
AvailabilityUsually in 15working days
STATUS
OPTIONS-SXETIKA
VIDEO SPECIFICATIONS
LENS SYSTEM
CONNECTIONS
GENERAL FEATURES
MORE SPECIFICATIONS
PHYSICAL
HM250 CMOS 1/2.3" 12X 4K
- GY-HM250E Camera
- SSL-JVC50 Battery
- AC/DC adapter
- Handle unit with Professional Audio XLR support
- Instructions
HM250 CMOS 1/2.3" 12X 4K
Brochure
JVC_GY-HM250_Brochure.pdfOperation Manual
JVC_GY-HM250-180_Manual.pdfComparison Chart
JVC_Comparison-Chart.pdfJVC GY-HM250 Review
JVC GY-HM250 Review 2
