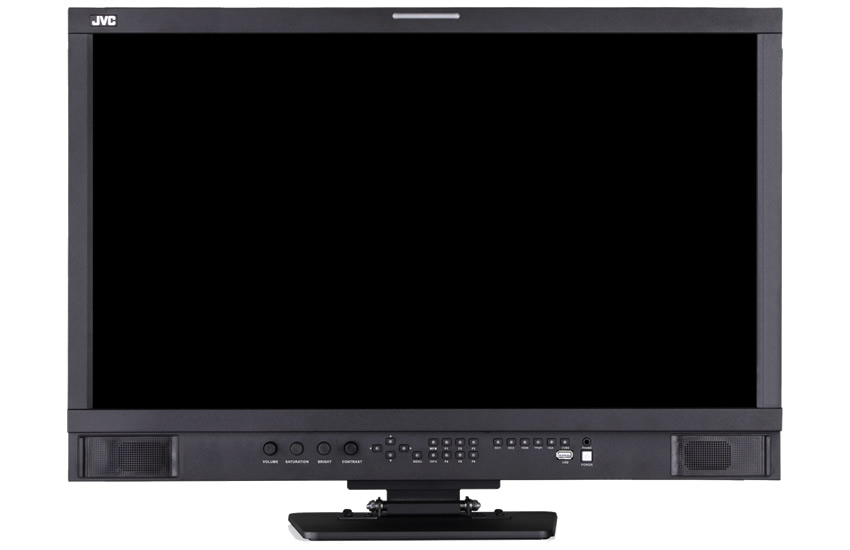

DT-G27E
Special Price
Not in stock
Quick Overview
- Monitor 27"
- LCD 27" 1920x1080Pixel
- 3G/HD/SD-SDI & HDMI 4K IN/OUT
- Composite/Component IN/OUT
- Tally & Headphones output
- Waveform/Histogram/Vector
- Downscale 4K
- 2-year Warranty
DT-G27E
HD production monitors
DT-G17E – 17" HD production monitor
DT-G21E – 21" HD production monitor
DT-G24E – 24" HD production monitor
DT-G27E – 27" HD production monitor
• High quality 8-bit IPS panels with 12-bit signal processing
• 2x 3G/SDI in/out, 1x HDMI 2.0 in/out
• Downscaling 4K sources on HDMI in
• 1 x component in, 1 x VGA Sub-D input
• 1 x composite in/out
• Assist features include H/V Delay, Frame Field mode, Markers, UMD/4K
enlargement any area
• Waveform monitoring (with line selector, vector, histogram
• 16-channel audio metering with 2-ch. de-embedded outputs
• Colour management: 3D-LUTs and Log support
• Integrated calibration software, with USB support for sensors
• External controls: serial for TSL UMD, monitor control via IP
• Power for V-mount battery or AC/DC adapter
DT-G27E
-
Status
New
Monitor TypePreview Monitor
-
Options
27"
-
Panel Size
27"
Panel TypeLCD IPS
Panel ResolutionFull HD 1920x1080pixels
Panel Aspect Ratio16:9
Aspect Ratio SwitchYes
Input ResolutionsSD 576i PAL(16:9)
SD 480i NTSC(16:9)
832 x 624pixels
1152 x 870pixels
HD 720: 1280x720pixels(16:9 aspect ratio)
HD 1080: 1920x1080pixels(16:9 aspect ratio)
Frames Supported4K Downscale.
24P/25P/30P/50P/50i/60P/60i @1920x1080Pixel
50P/60P @1280x720Pixel
25P/50i @720x576Pixel
30P/60i @720x480pixelContrast1000:1
Brightness250 nits
Colors16.7 Million
Color Depth8-bit
Viewing Angle178 Degrees
-
Video inputs
3G/HD/SD-SDI (BNC)
HDMI 4K
YPbPr(3x BNC)
CVBS(BNC)
VGA(15-pin)
Video outputs3G/HD/SD-SDI (BNC) (LOOP)
HDMI 4K
CVBS(BNC)
Audio inputsRCA Line
16CH embedded audio SDI
16CH embedded audio HDMI
Audio outputsJack 3.5mm Phones
2CH Embedded Audio SDI
2CH Embedded Audio HDMI
PC ConnectionsUSB
RS-232
RS-485
GPI
Ethernet RJ-45
-
Monitor Features
Waveform
Vectorscope
Histogram
Zoom
False Color
Overlay - Scan Mode
Guides - Safety Marker
3D LUT Support
Audio Meters
Timecode Display
TallyYes
SpeakersYes
-
Power
V-Lock Type Battery
4pin XLR DC input
AC 220V
No. of battery slots1
Power ConsumptionNot specified
Warranty2-Years
Country of OriginJapan
-
Total Weight (KG)
12.5
Total Dimensions (WxHxD) (mm)685x520x258
AvailabilityUsually in 15working days
STATUS
OPTIONS-SXETIKA
PANEL
CONNECTIONS
GENERAL FEATURES
MORE SPECIFICATIONS
PHYSICAL
DT-G27E
- Monitor
- Power cable
- V-Lock Plate
JVC_DT-G_Brochure.pdf
