PZ200 Black 20X NDI PTZ HD
MFR #KY-PZ200NBE BLK #197-0372
Special Price
Not in stock
Quick Overview
- Compact PTZ Remote Camera
- Full HD 1080 50/60P
- Live Streaming
- With NDI
- CMOS 1/2,8" 2.07MP
- Dual streaming
- HDMI & 3G-SDI Outputs
- S/N: 55dB
PZ200 Black 20X NDI PTZ HD
JVC’s new HD robotic pan, tilt and zoom video production camera, the KY-PZ200 offers NDI®|HX, SRT and supports POE for a true 'one cable solution'. Ideal for studio or field use, the PTZ camera enables reliable remote IP production for education, corporate, live events and sport applications.
Multi-camera synchronization for live event productions is simply achieved with VITC with NTP. This feature is ideal for the mixing and streaming of concerts, shows and sporting events where image synchronization is critical.
Multi-camera synchronization for live event productions is simply achieved with VITC with NTP. This feature is ideal for the mixing and streaming of concerts, shows and sporting events where image synchronization is critical.
PZ200 Black 20X NDI PTZ HD
-
Status
NoView
Camera TypeStudio Camera
Compact Camera
HD Camera
-
Camera options
PZ200 NDI
-
Max Video Resolution
HD 1080: 1920 x 1080pixels (16:9 aspect ratio)
Slow MotionNo
-
Sensor Type
CMOS
Sensor Size1/3" (crop factor 7.21)
Sensor Resolution2.07MP
Lens MountFixed
Focal Length (35mm equivalent)4.4 to 88.5mm
Optical Zoom20X (Optical).
16X (Digital).Max ApertureF1.8 to F2.8
Image StabilizerNo
ND FiltersNo
-

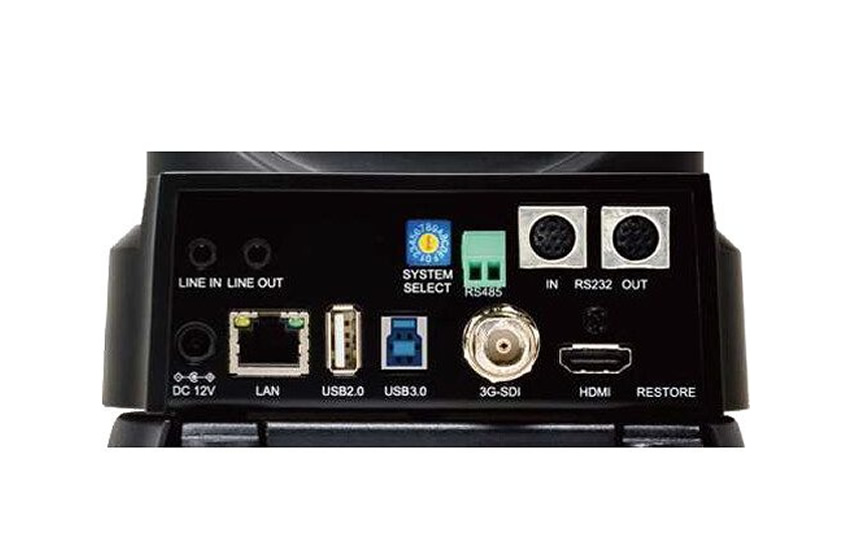

Video outputs
HDMI
3G-SDI
NDI Video Stream
Audio inputsJack 3.5mm Mic/Line
Audio outputsJack 3.5mm Stereo
2CH Embedded Audio SDI
2CH Embedded Audio HDMI
2CH embedded audio NDI
PC ConnectionsUSB2.0
USB3.0
RS-232
Ethernet RJ-45
-
Pan/Tilt Operation
Yes
Pan/Tilt SpeedPan: Max 100°/s
Tilt: Max 70°/sPan Range±170°
Tilt Range-30° to +90°
Shutter speed1/30 to 1/10000
Min. Illumination0.5LUX
-
Extras
KY-PZ200NBE offers NDI®|HX, SRT and supports POE for a true 'one cable solution'.
PowerPower adapter
Power Consumption12W (12V/1.0A)
Warranty2-Years
Country of OriginJapan
-
Total Weight (KG)
1.7
Total Dimensions (WxHxD) (mm)142x164x169
AvailabilityUsually in 15working days
STATUS
CAMERAS-SXETIKA
VIDEO SPECIFICATIONS
LENS SYSTEM
CONNECTIONS
GENERAL FEATURES
MORE SPECIFICATIONS
PHYSICAL
PZ200 Black 20X NDI PTZ HD
- AC/DC adapter
- RS232 Cable
- Ceiling mount bracket
PZ200 Black 20X NDI PTZ HD
JVC_KY-PZ200_Brochure
JVC_KY-PZ200_Brochure.pdf
General Specifications
JVC_PTZ-Cameras_General-Specifications.pdf
