PZ200 White 20X NDI PTZ HD
Special Price
Not in stock
Quick Overview
- Compact PTZ Remote Camera
- Full HD 1080 50/60P
- Live Streaming
- With NDI - 20X Lens
- CMOS 1/2,8" 2.07MP
- Dual streaming
- HDMI & 3G-SDI Outputs
- S/N: 55dB
PZ200 White 20X NDI PTZ HD
Multi-camera synchronization for live event productions is simply achieved with VITC with NTP. This feature is ideal for the mixing and streaming of concerts, shows and sporting events where image synchronization is critical.
PZ200 White 20X NDI PTZ HD
-
Camera options
PZ200 NDI
-
Status
Discontinued
Camera TypeStudio Camera
Compact Camera
HD Camera
-
Video Resolution
HD 1080: 1920 x 1080pixels(16:9 aspect ratio)
Slow MotionNo
Quick Motion - Time LapseNo
Frame Rate50i/50P/60i/60P @1920x1080Pixel
Rec Time267min @28Mbps with 64GB REC-Media
213min @35Mbps with 64GB REC-Media
148min @50Mbps with 64GB REC-Media
Pre RecordNo
-
Sensor Type
CMOS
Sensor Size1/2.8"
Sensor Resolution2.07MP
Lens TypeFixed
Lens ManufacturerJVC
Focal Length4.4 to 88.5mm
Zoom20X (Optical).
16X (Digital).ApertureF1.8 to F2.8
Control RingsNo Rings
Auto FocusYes
Image StabilizerNo
ND FiltersNo
-

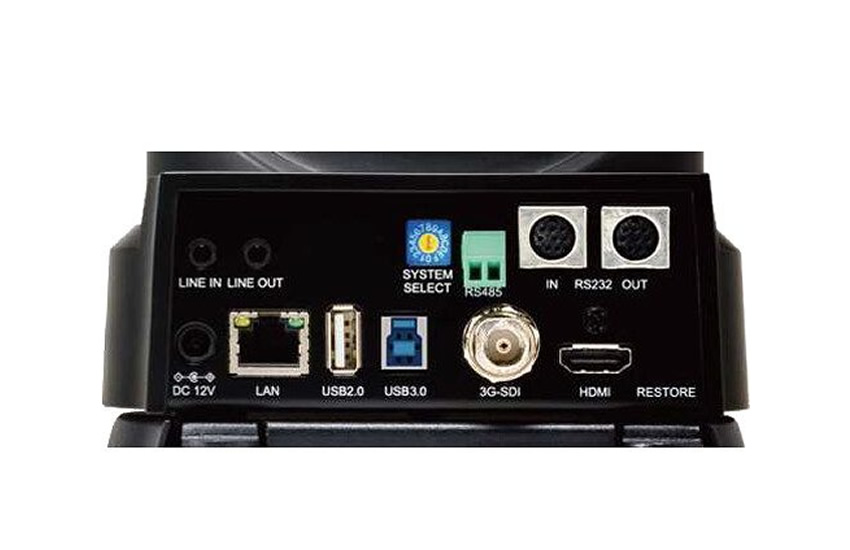

Video outputs
HDMI
3G-SDI
NDI Video Stream
Audio inputsJack 3.5mm Mic/Line
Audio outputsJack 3.5mm Stereo
2CH Embedded Audio SDI
2CH Embedded Audio HDMI
2CH embedded audio NDI
PC ConnectionsUSB2.0
USB3.0
RS-232
Ethernet RJ-45
-
Pan/Tilt Operation
Yes
Pan/Tilt SpeedPan: Max 100°/s
Tilt: Max 70°/sPan Range±170°
Tilt Range-30° to +90°
Shutter speed1/30 to 1/10000
Video S/N55dB
Min. Illumination0.5LUX
StreamingWeb Live Streaming with internal engine
File TransferSupports FTP Transfer
-
Extras
KY-PZ200NWE offers NDI®|HX, SRT and supports POE for a true 'one cable solution'.
PowerPower adapter
Power Consumption12W (12V/1.0A)
Warranty2-Years
Country of OriginJapan
-
Total Weight (KG)
1.7
Total Dimensions (WxHxD) (mm)142x164x169
AvailabilityUsually in 15working days
CAMERAS-SXETIKA
STATUS
VIDEO SPECIFICATIONS
LENS SYSTEM
CONNECTIONS
GENERAL FEATURES
MORE SPECIFICATIONS
PHYSICAL
PZ200 White 20X NDI PTZ HD
- AC/DC adapter
- RS232 Cable
- Ceiling mount bracket
PZ200 White 20X NDI PTZ HD
JVC_KY-PZ200_Brochure
JVC_KY-PZ200_Brochure.pdf
General Specifications
JVC_PTZ-Cameras_General-Specifications.pdf
