PZ100 Black 30X NDI PTZ HD

MFR #KYPZ100BENDI  BLK #197-0326

Special Price

Not in stock

Quick Overview

  • Compact PTZ Remote Camera
  • Full HD 1080 50/60P
  • Live Streaming - NDI Support
  • CMOS 1/3" 2.13MP
  • 30.5-915mm 30X
  • MicroSD Card for internal recording
  • HDMI & 3G/SD-SDI Outputs
  • S/N: 50dB

PZ100 Black 30X NDI PTZ HD

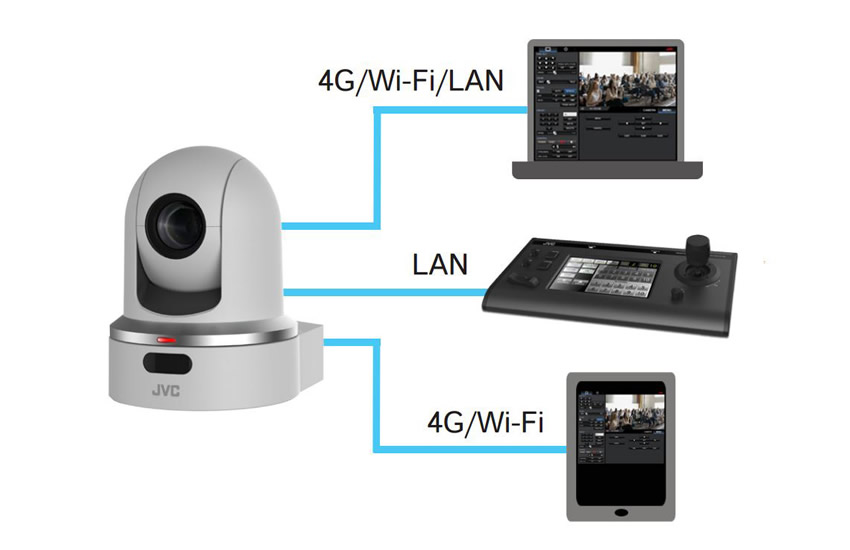

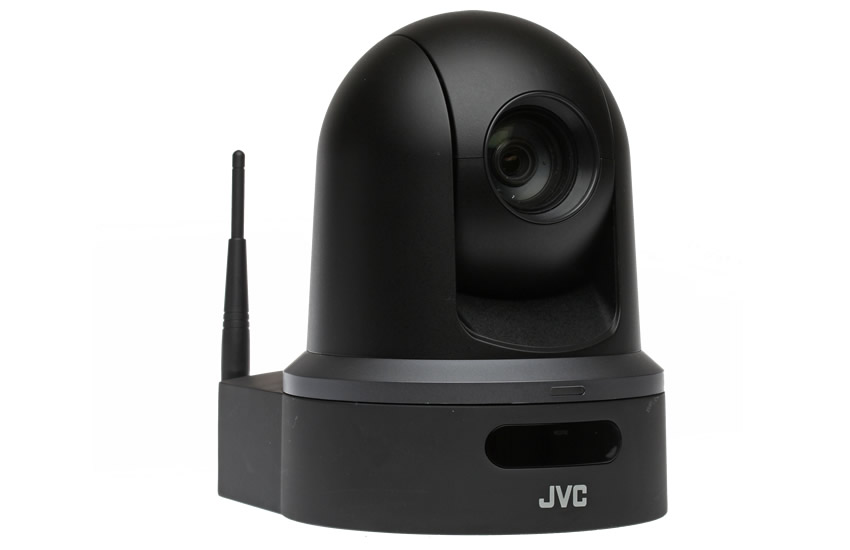

The KY-PZ100 is a robotic pan, tilt and zoom video production camera. It's the first PTZ camera that features JVC's unique IP communications engine providing network connection via WiFi*, 4G-LTE*, or cabled LAN. It's designed to be used as a stand alone remote camera or as part of a multi-camera system in both studio and field environments. In addition to its 3G-SDI and HDMI outputs, it is also capable of reliably streaming 1080i/60, 1080p, 720p, and 360p video with 2-channel audio--all with minimal latency and forward error correction. Camera control is possible from a web browser, or with the dedicated RM-LP100 remote control panel, or from a variety of remote units using standard protocol. The camera also includes on-board HD recording at up to 50Mbps to a micro SDHC/SDXC card with the ability to upload the recorded files to an external server.

The KY-PZ100 features JVC's highly accurate direct drive mechanism for smooth, quiet and precise positioning with up to 100 preset positions. Positioning can be performed at a range of speeds from very very slow to very fast while retaining pin-point accuracy (within 0.03°). A newly developed 1/2.8-inch image sensor and 30x optical zoom lens produce superb broadcast quality images even in low light environments. The camera's Wide Dynamic Range mode provides clear natural foreground images even under challenging highlight conditions.

Power the camera, control it, and stream to the world all from a single ethernet cable. Or go wireless. Just provide power to the camera, plug in a WiFi adapter or LTE modem, and you'll have the world's most convenient, high quality robotic camera that can be placed virtually anywhere, stream full HD, and be controlled from anywhere in the world!

Key features:
  • 1/2.8-inch CMOS sensor (2.2 million pixels)
  • Optical zoom lens with 30x zoom ratio (4.3-129mm, f/1.6~4.7)
  • 12x digital zoom
  • Autofocus and image stabilization built-in.
  • Fast f/1.6-4.7 maximum aperture for excellent low light
  • High sensitivity mode (down to 0.02 lux, color)
  • Night mode (0.003 lux, BW)
  • Direct drive motor for smooth, quiet and accurate pan and tilt
  • PoE+ equipped: LAN cable enables simultaneous streaming, camera control and power supply
  • Full HD 1080p, 1080i, 720p video
  • Simultaneous 3G-SDI and HDMI and IP digital outputs
  • 2 channels audio (or 1 channel balanced audio)
  • USB host connection for WiFi or 4G LTE adapter*
  • Advanced IP communications capability:
  • Streaming with SMPTE 2022 forward error correction
  • Advanced Zixi reliable communication with ARQ, FEC and adaptive bitrate control
  • (Requires optional Zixi license)
  • Low latency streaming
  • RTMP streaming directly to content delivery network
  • (JVC VIDEOCLOUD, YouTube, Ustream, etc.)
  • Micro SDHC/SDXC memory card recording (H.264 50Mbps)
  • Remote control via RS-232C / RS-422, or via IP controller
  • Can memorize 100 preset settings and positions
  • Can be mounted upside-down or right-side-up
  • NDI Support

PZ100 Black 30X NDI PTZ HD

  1. STATUS

  2. Status

    Discontinued

    Camera Type

    Studio Camera

    Compact Camera

    HD Camera

  3. CAMERAS-SXETIKA

  4. Camera options

    PZ100 NDI

  5. VIDEO SPECIFICATIONS

  6. Video Format

    MPEG4/H.264 up to 50Mbps - 4:2:2/8bit - MOV files

    Video Resolution

    HD 720: 1280 x 720pixels(16:9 aspect ratio)

    HD 1080: 1920 x 1080pixels(16:9 aspect ratio)

    Slow Motion

    No

    Quick Motion - Time Lapse

    No

    Frame Rate

    25P/30P/50i/50P/60i/60P @1920x1080Pixel
    25P/30P/50P/60P @1280x720Pixel
    640x360Pixel, 320x180Pixel in Live streaming only.

    Rec Media

    Micro SD/SD-HC/SD-XC Card

    Rec Time

    267min @28Mbps with 64GB REC-Media

    213min @35Mbps with 64GB REC-Media

    148min @50Mbps with 64GB REC-Media

    Pre Record

    No

  7. LENS SYSTEM

  8. Sensor Type

    CMOS

    Sensor Size

    1/3" (crop factor 7.21)

    Sensor Resolution

    2.13MP

    Lens Type

    Fixed

    Lens Manufacturer

    JVC

    Focal Length

    30.5mm to 915mm (35mm equivalent)

    Zoom

    30X (Optical).
    12X (Digital).

    Aperture

    Zoom out: F1.6 to F11
    Zoom in: F4.7 to F32

    Control Rings

    No Rings

    Auto Focus

    Yes

    Image Stabilizer

    No

    ND Filters

    No

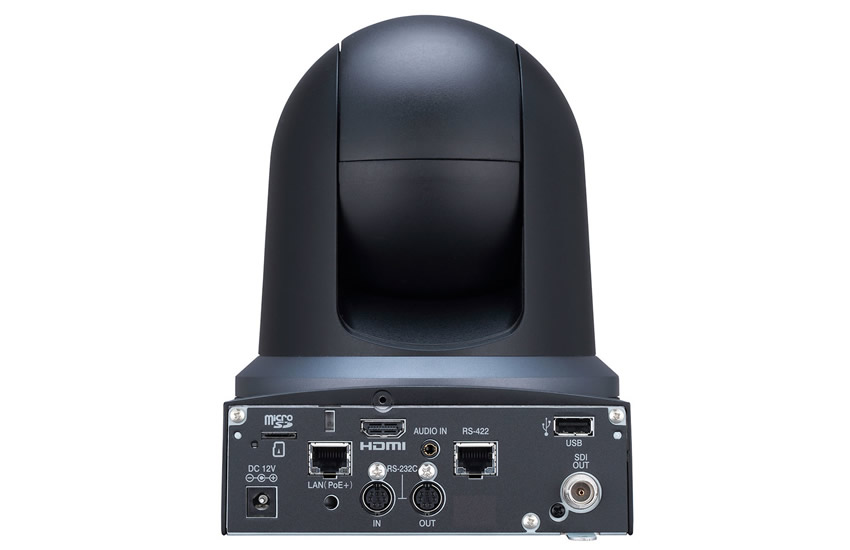

  9. CONNECTIONS

  10. Video outputs

    HDMI

    3G/HD/SD-SDI (BNC)

    Audio inputs

    Jack 3.5mm Mic/Line

    Audio outputs

    2CH Embedded Audio SDI

    2CH Embedded Audio HDMI

    PC Connections

    USB2.0 Host

    RS-232

    Ethernet RJ-45

    WiFi

  11. GENERAL FEATURES

  12. Pan/Tilt Operation

    Yes

    Pan/Tilt Speed

    Pan: Max 480°/s
    Tilt: Max 300°/s

    Pan Range

    ±175°

    Tilt Range

    -30° to +90°

    Shutter speed

    1/6 to 1/10000

    Video S/N

    50dB

    Min. Illumination

    0.2LUX

    Streaming

    Web Live Streaming with internal engine

    File Transfer

    Supports FTP Transfer

  13. MORE SPECIFICATIONS

  14. Extras

    Live Streaming through Ethernet, 3G/4G or WiFi.
    NDI Support.

    Power

    Power adapter

    Power Consumption

    19.2W (12V/1.6A)

    Warranty

    2-Years

    Country of Origin

    Japan

  15. PHYSICAL

  16. Total Weight (KG)

    2.0

    Total Dimensions (WxHxD) (mm)

    154x200x191

    Availability

    Usually in 15working days

PZ100 Black 30X NDI PTZ HD

  • Direct ceiling mount bracket
  • Screws (M3)
  • Screws (M2.6)
  • Wireless remote control
  • AC adapter
  • Fall prevention wire
  • Template
  • Instruction manual

PZ100 Black 30X NDI PTZ HD

Operation Manual

JVC_KY-PZ100_Manual.pdf
